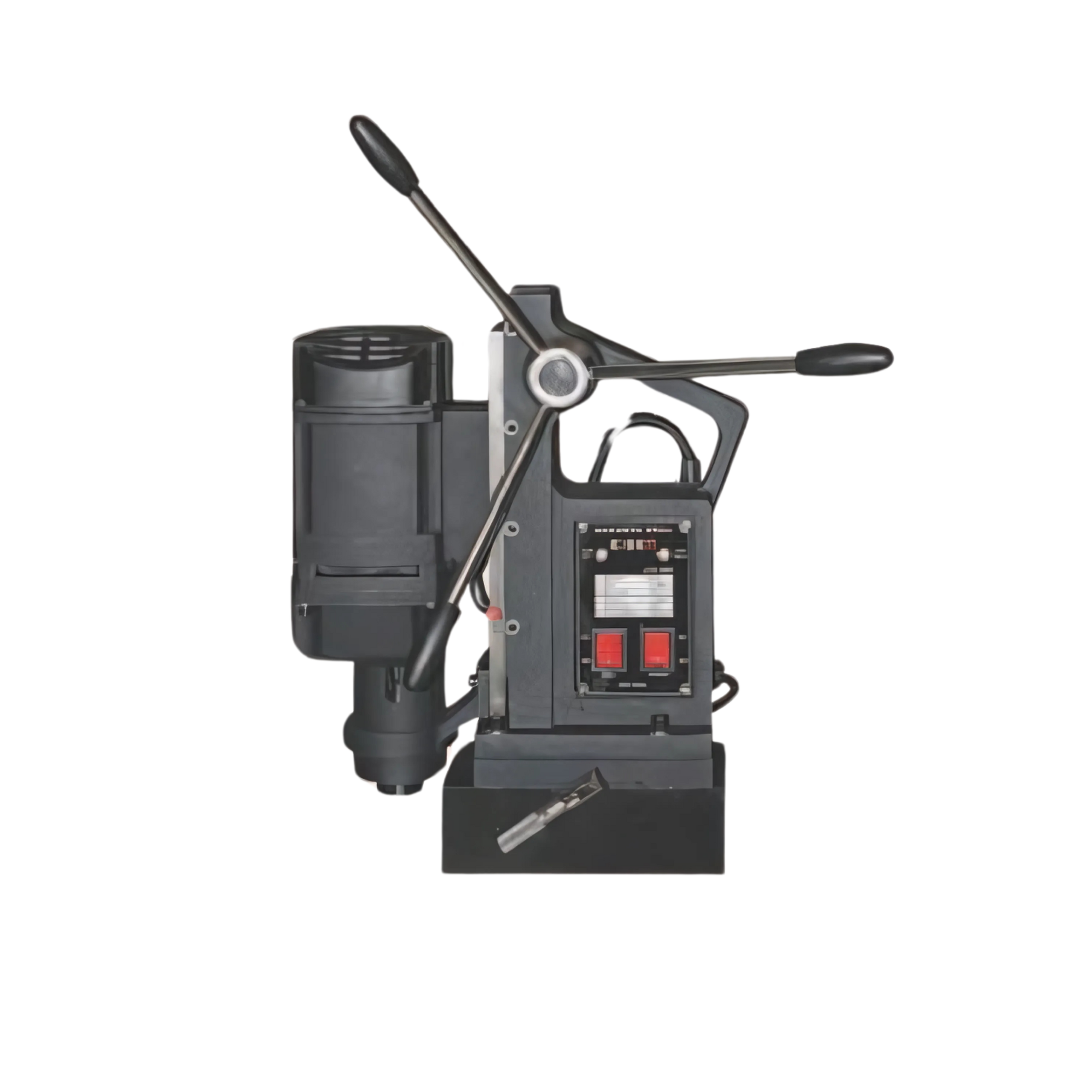

Magnetic Drilling Machine

Magnetic Drilling Machine

J1C | MCD

Category: Tag:

A Magnetic Drilling Machine, often referred to as a Mag Drill, is a portable power tool used for drilling holes in metal surfaces. It uses a strong magnetic base that can attach to ferrous metals, allowing the machine to be securely anchored during operation. This stability makes it ideal for heavy-duty and precise drilling, especially in situations where large, stationary drill presses are not feasible. Magnetic drilling machines are commonly used in construction, steel fabrication, and other industrial applications where precise, stable drilling is needed.

Type

J1C23A, J1C23N, J1C25N, J1C28N, J1C32B, MCD50
Main

230 V – 50 Hz
Motor Power

J1C23A , J1C23N, J1C25, J1C28N : 1000 W, J1C32B : 1050 W, MCD50 : 1600 W
Magnet Adhesion

J1C23A , J1C23N, J1C25, J1C28N : 12000 N, J1C32B : 13000 N, MCD50 : 11000 N
Core Drill

MCD50 : ø12-50 mm
Twist Drill

J1C23A, J1C23N : ø23 mm, J1C25N : ø25 mm, J1C28N : ø28 mm, J1C32B : ø32 mm, MCD50 : ø32 mm
Travel

J1C23A , J1C23N, J1C25N, J1C28N : 210 mm, J1C32B : 180 mm, MCD50 : 145mm
Spindle Taper

J1C23A , J1C23N, J1C25N, J1C28N : MT 3, J1C32B : MT 4, MCD50 : MT 3
Speed

J1C23A , J1C23N, J1C25N, J1C28N, J1C32B : 350 rpm, MCD50 : 400 rpm, 600 rpm
Gross/Net Weight

J1C23A , J1C23N, J1C25, J1C28N : 28/26 kgs, J1C32B : 55/53 kgs, MCD50 : 38/35 kgs
Packing dimensions

J1C23A , J1C23N, J1C25N, J1C28N : 610 mm × 210 mm × 590 mm, J1C32B : 560 mm × 250 mm × 590 mm, MCD50 : 415 mm × 295 mm × 595 mm
