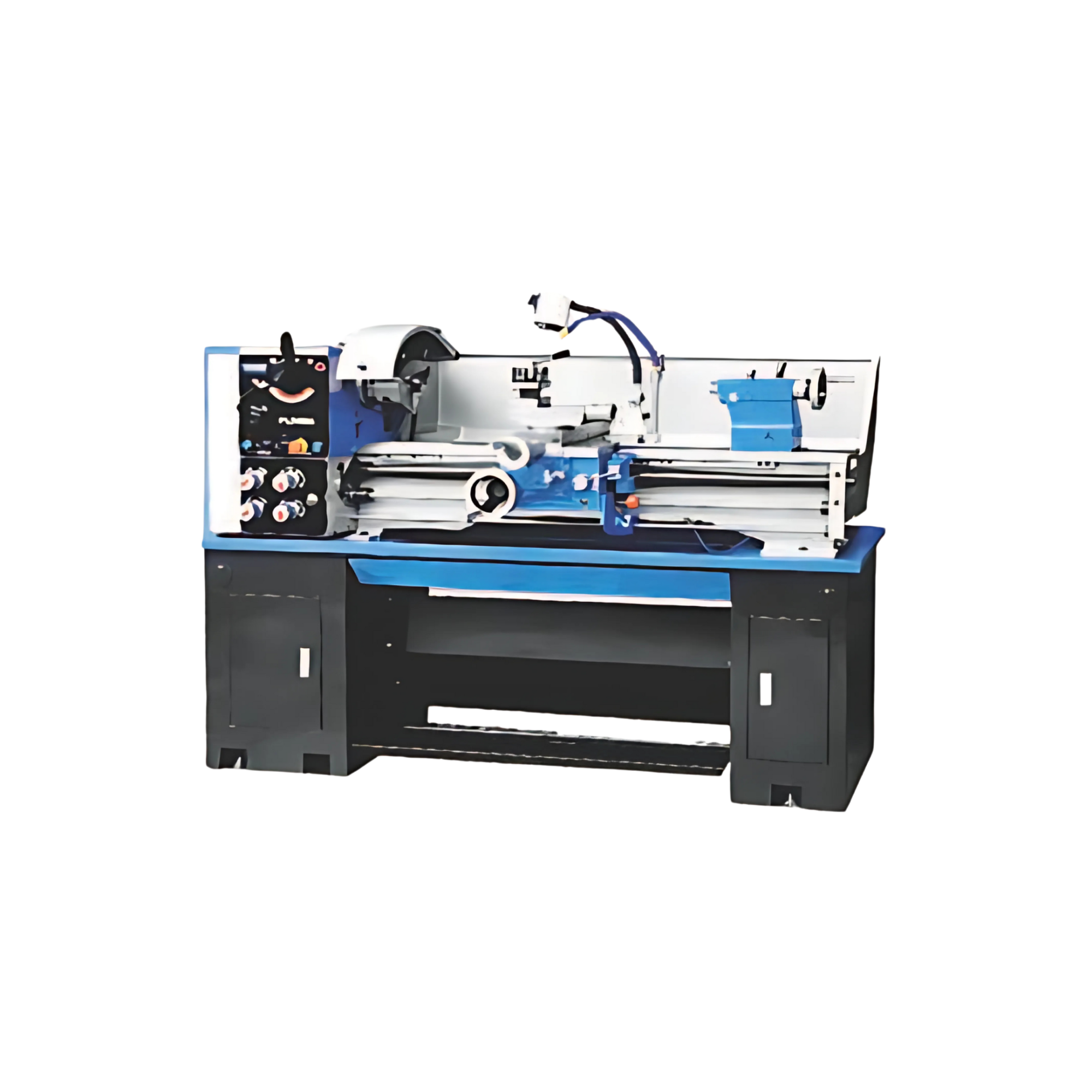

Bench Lathe Machine

Bench Lathe Machine

PL 360 A

Rp 110.000.000

Category: Tag:

A Bench Lathe Machine is a compact and versatile type of lathe, typically mounted on a workbench, and designed for small to medium-sized workpieces. These machines are widely used in both home workshops and small-scale industrial environments for tasks like turning, facing, drilling, threading, and knurling. They’re ideal for working on metals, plastics, and sometimes wood, making them a popular choice among hobbyists, machinists, and engineers.

Max. Swing Over Bed (mm)

358
Max. Swing Over Carriage (mm)

224
Max. Swing Over Gap (mm)

502
Distance between centers (mm)

1000
Bed width (mm)

187
Spindle Bore (mm)

38
Spindle Taper

MT 5
Spindle Speed (rpm)

70 – 2000
Metric threads (mm)

0.4 – 7
Inch threads

4 – 56 TPI
Range of Longitudinal Feeds (mm/rev)

0.052 – 1.392
Max. Cross Travel (mm)

160
Compound Travel (mm)

75
Taper of tailstock (mm)

MT 3
Tailstock Travel (mm)

135
Tailstock diameter (mm)

35
Motor Power (KW)

1.5
Net Weight (KG)

505
Packing Dimension ( L x W x H ) (mm)

1920 x 750 x 1460
